DS3 family

Board Version
Connector Kit
Crimp Tool
Soft Touch Knob Kit

Our Price: £26.00
DS3 family
DS3 family DS3 family DS3 family DS3 family
Description

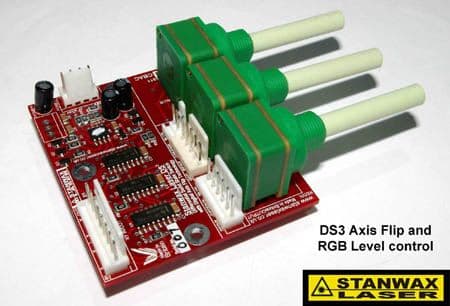

Stanwax Laser DS3 Range of projector contol boards. The DS3 provides a solid state axis flip and swap contol circuit with optional pots for level control of your RGB levels or X/Y scale. The board stores the settings selected by use of 2 push buttons in its internal flash ram and loads the last set values on power up so the board will not loose the projector configuration. The axis are flipped by a short press on the button - one will control the horizontal (X) axis while the other controls the vertical (Y) axis. Press and hold either button for more than 3 seconds and X and Y are swapped around allowing you to mount the projector at 90 degrees to normal.

Manual for this product can be found
here












Optional connector kits are availabe for the various models
Optional Molex Crimp tool with Ratchet action for KK and many other Molex style connectors - £30.00
Optional soft touch knobs with push on fitting sold as RGB for CB versions and in yellow for AC versions
DS3FCB - Full board with axis flip and RGB level pots* for panel mounting
DS3FAC - Full board with axis flip and X/Y level pots* for panel mounting
DS3AF - axis flip board only for internal mounting and rear panel mounted push buttons
DS3CB - Pot board only with RGB level pots
DS3AC - Pot board only with X/Y level pots

* these 2 versions can be supplied without the push buttons fitted so you can use your own push buttons and mount them where you wish please email us when you place the order of you wish the buttons to be left off.


Customer Reviews
Write an online review and share your thoughts with other shoppers!


Reviewer: Sebastien K from Switzerland   5 Stars
DS3AF is really the perfect way to add axis flip feature to your projectors! No more fiddling with unreliable DPDT switches, just put this board between ILDA connector and scanners amp input, and that''s all. Also thanks for the ultra fast email answers, as well as the lightning fast packaging and shipping. 5 stars service!

Reviewer: Steve Milani from North of Italy   5 Stars
Safe and fast shipping. All components have high quality and their assembly is very accurate. Prices are cheap and honest. All Stanwax's products are rock solid! Rob really is a great guy. I highly recommend him and all his products also.
