General purpose Ilda breakout board

Board type
Ribbon cable
Connector Kit
Crimp Tool

Our Price: £5.50
General purpose Ilda breakout board
General purpose Ilda breakout board General purpose Ilda breakout board General purpose Ilda breakout board General purpose Ilda breakout board
Description
This is the most flexible ILDA breakout board you will ever see!
Available with molex connections, self wired connections or screw terminals and as an internally mounted board or panel mount using a 90 degree sub d 25 way connector this board measuring just 84x50 mm is perfect for simple Ilda to projector hook up.
It breaks out all ilda lines to pads or connectors to make wiring of you laser projector a breeze.

Remember the price included VAT and UK shipping

Internal Versions - mounted using the mounting holes provided

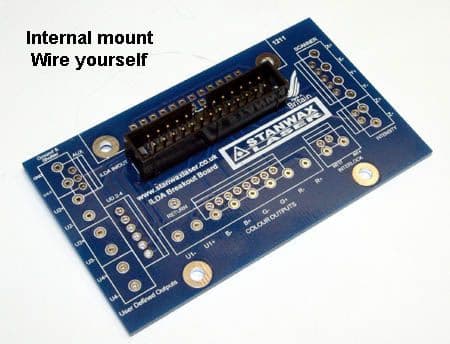

IWY - Wire yourself  - £5.50
IMK - Molex K - £6.50

External version - mounted to the rear panel using the db 25 connector

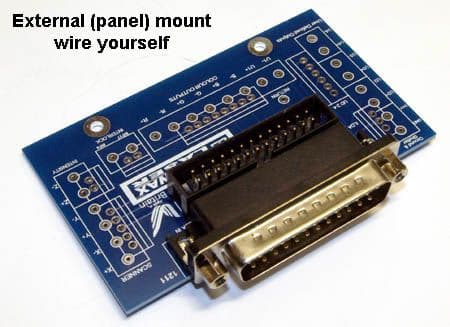

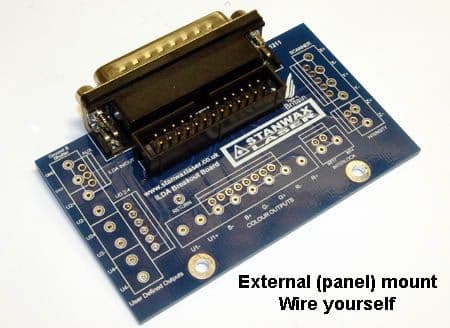

EWY - Wire yourself - £8

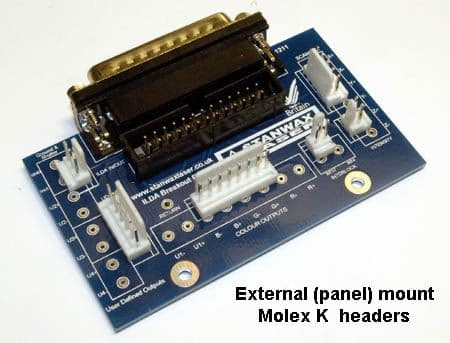

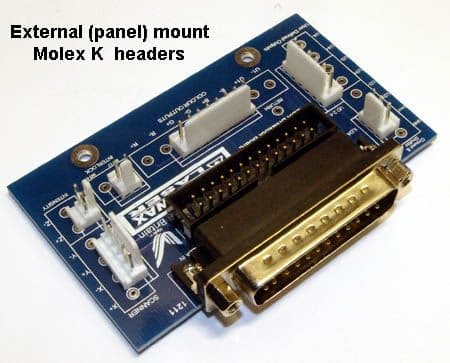

EMK - Molex K - £9

IST - Internal screw terminals - £8
EST - external screw terminals - £10

Options
Ilda out ribbon - for External versions - length 5cm
Ilda In/out ribbon - for internal versions - length 30cm
Ilda in ribbon - for internal versions - length 30 cm
Molex K connector kit - contains all the connector shells & crimps you need plus a few spares
Ratchet Crimp tool for Molex K crimps

Customer Reviews
Write an online review and share your thoughts with other shoppers!


Reviewer: johan from Netherlands   5 Stars
Great and easy product. Good quality. Wide range of use. No need to solder. Easy to place an replace.
