Etherdream 3 way switch

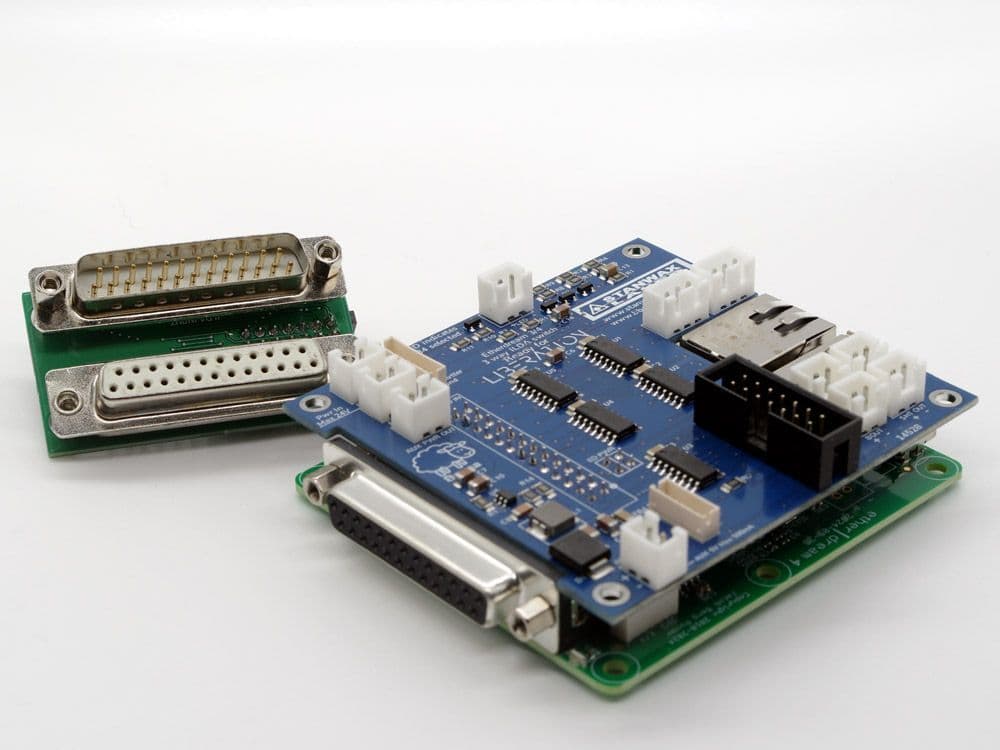

This is a daughter board that fits directly onto an Etherdream 3 or 4  when installed inside a laser projector. It will allow a user to have an Etherdream controller, ILDA input and a legacy controller and will switch automatically and seamlessly between control inputs. WIth the Etherdream idle it will send  the R,G,B,X,Y & shutter signals from the legacy controller (such as FB4 or internal DMX controller/player) to the laser modules and scanners. As soon as the Etherdream becomes active, for example when using Liberation laser software, the signals will automatically switch to output the Etherdream. If an ILDA input is detected the ILDA signals will be routed and whichever internal controller was active will be disconnected. This is ideal if you with to use modern software such as Liberation while maintaining a legacy connection to you older hardware/software.

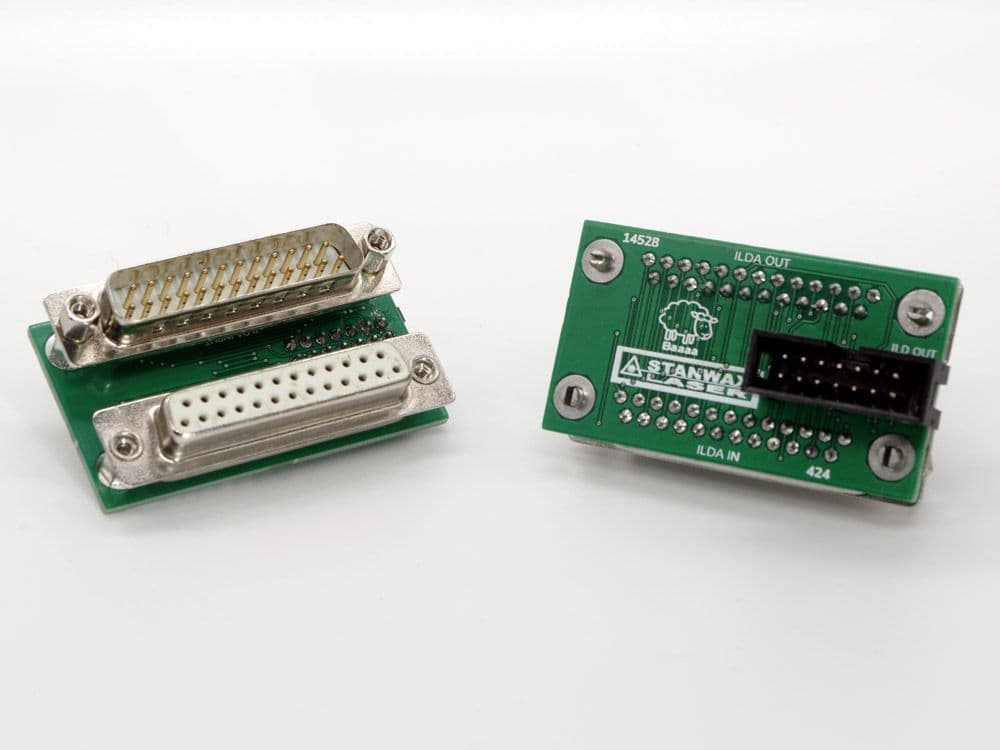

The board comes with the ILDA input/output board and a 25cm 14 way ribbon cable, 4 x M3 x12mm plastic spacersa and 2 JST-ZH  cables @100mm long (200mm will follow soon)  and there is an option for a connector kit containing crimp terminals and connector shells for all the JST XH used for the output signals and power input.

A video showing the board can be seen here
http://youtu.be/RWZ9gIWH2wo?si=oWBJQ6AIMMTIDO_j

Though please note ths laser in this example is wired slightly differently - the ILDA input will ALWAYS take preference to the internal controlers with the version you will recieve.
