Etherdream ILDA way switch

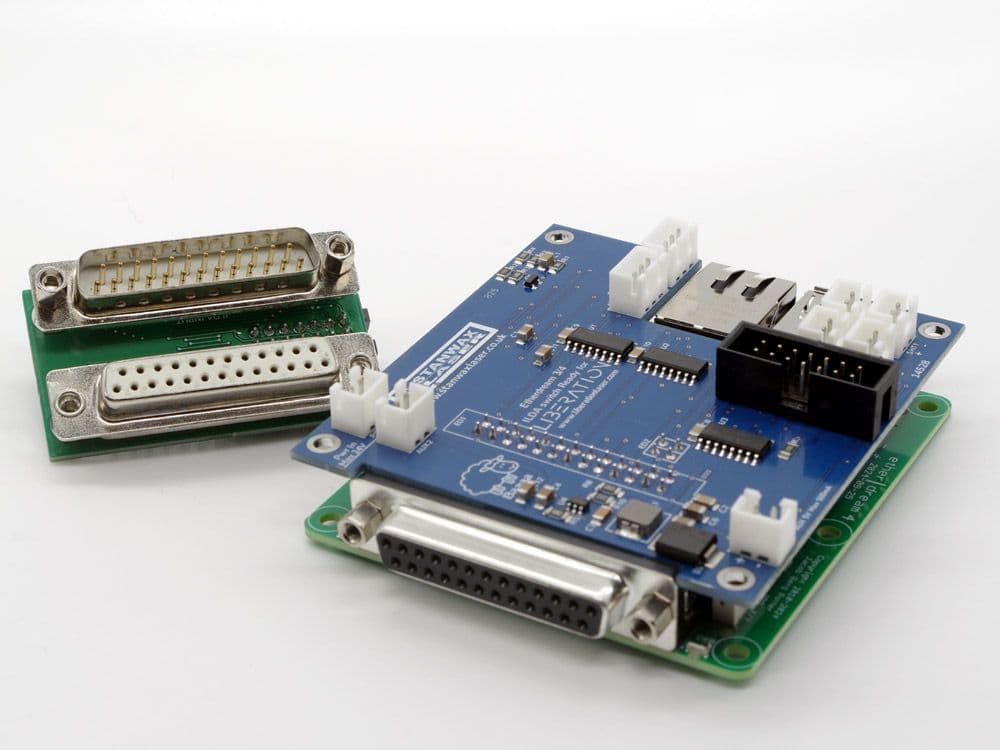

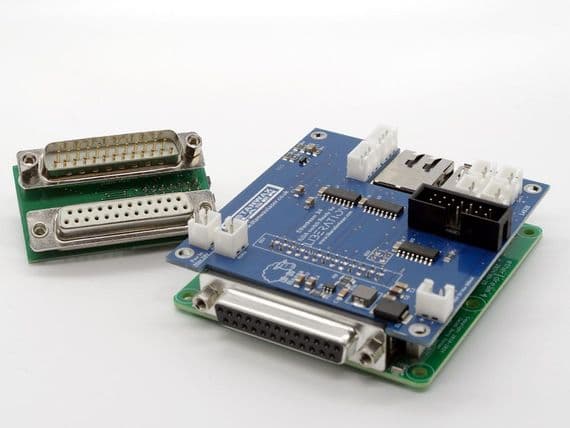

This is a daughter board that fits directly onto an Etherdream 3 or 4  when installed inside a laser projector and is ideal for getting the best from your laser when using Liberation laser software while keeping an option for an ILDA input. It will allow a user to have an Etherdream controller, and ILDA input and will switch automatically and seamlessly between control inputs. In regular use the Etherdream signals  (R,G,B,X,Y & shutter)  to the laser modules and scanners. As soon as an ILDA input is detected the ILDA signals will be routed and Etherdream will be disconnected.

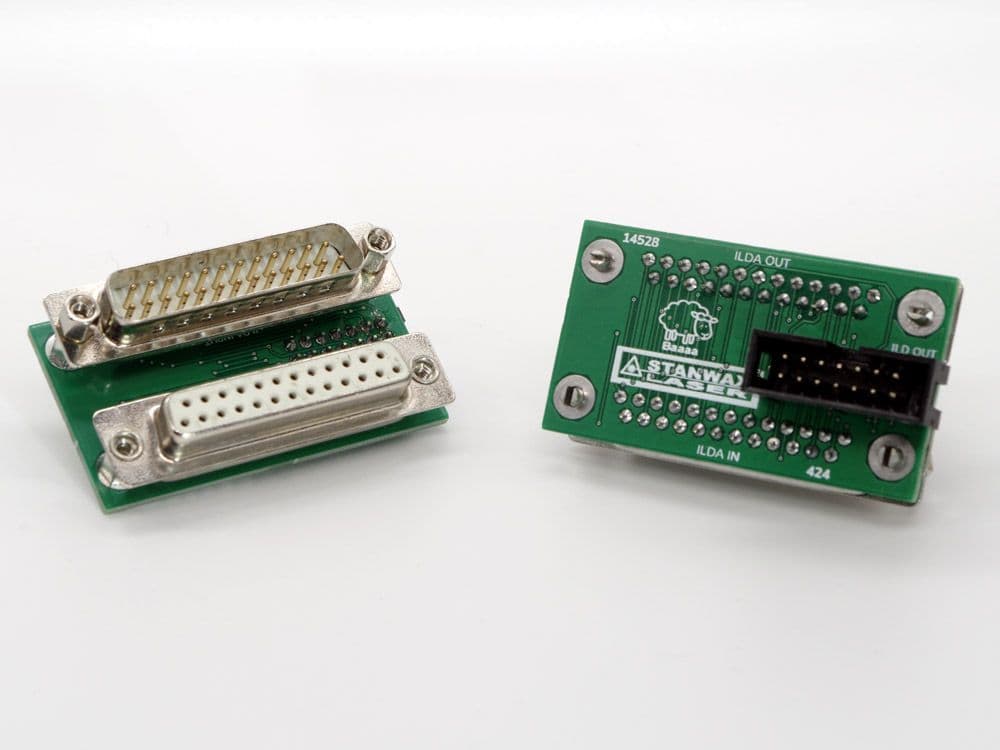

The board comes with the ILDA input/output board and a 25cm 14 way ribbon cable and 4x12mm M3 tapped spacers to allow fitting to the Etherdream.  There is an option for a connector kit containing crimp terminals and connector shells for all the JST XH used for the output signals and power input.

A video showing the 3 way version of the board can be seen here
http://youtu.be/RWZ9gIWH2wo?si=oWBJQ6AIMMTIDO_j

Though please note ths laser in this example is wired slightly differently - the ILDA input will ALWAYS take preference to the internal controlers with the version you will recieve.
