Ilda Interface S4FB for Pangolin FB4

About This Product
New option added August '17
to keep in line with the FB4 power connectors we have introduced an option for this product. You now must select between push in wires for original style power connector supplied on FB4, or the JST style connector currently in use. Please check your FB4 before ordering.

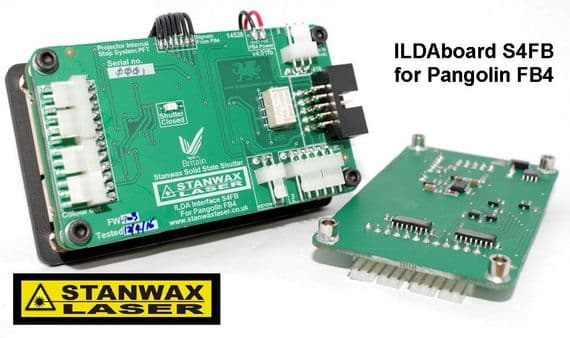

Ilda board S4FB provides interlock and e-stop functionality to a projector equipped with an internally fitted Pangolin FB4 or an FB4 in a remote housing.
A video of the stop functions and why this product is beneficial can be found
The manual for this product as well as our other products can be found here

New features June '16
* Stanwax Solid State shutter
* User programmable timer
* headers for Bi-coloured LED, Power LED and Emission LED
* On board LED for status of solid state shutter

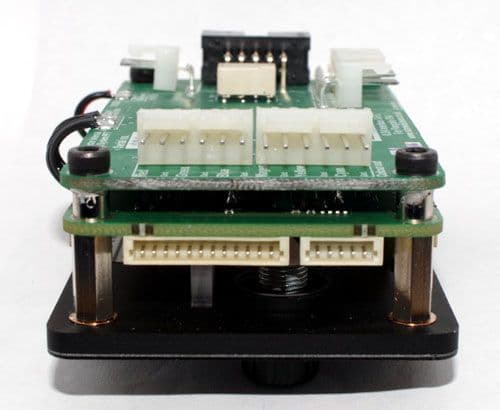

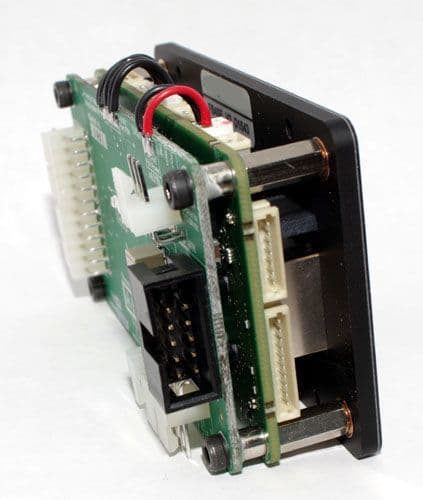

Comes complete with hardware required for attaching to your FB4

Connector kit - contains 3x6way, 1x3way and 1x 2way  plus 23 crimp terminals - £2.50

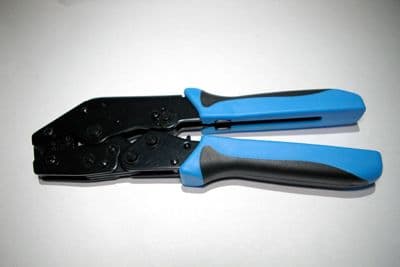

Optional Molex Crimp tool with Ratchet action for KK and many other Molex style connectors - £30.00


Dimensions 85mm x 50mm
Power requirements +12-24vdc 40mA
Laser control 6 channel solid state shutter

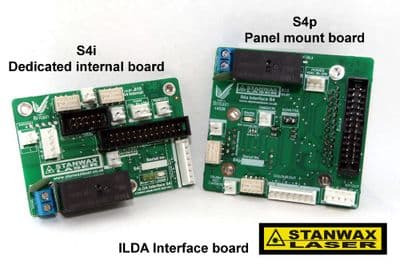

Mounting provided by built in 25 and 9 way Sub D connectors (S4p)
Mounting bushes attached to PCB x 3 (S4i)
Laser start up time User programmable 0-60 seconds (7 seconds default)
Solid state Shutter
response time
<100us to beam extinguish
